Description
R2000-6
Automatic paperless rhinestone setting machine Project
* 10 meters/minute
* Run 3 color or six different size hotfix rhinestone
* For whole Rolls Fabric width 2000mm
The machine’s main purpose uses a pattern template installed on a hotfix rhinestone machine to display and attach the hotfix stone drills to various clothing fabrics, and then heats them up with an fusing machine to directly fix the beautiful stone design on the clothing fabrics.
Product Component and Characteristics:

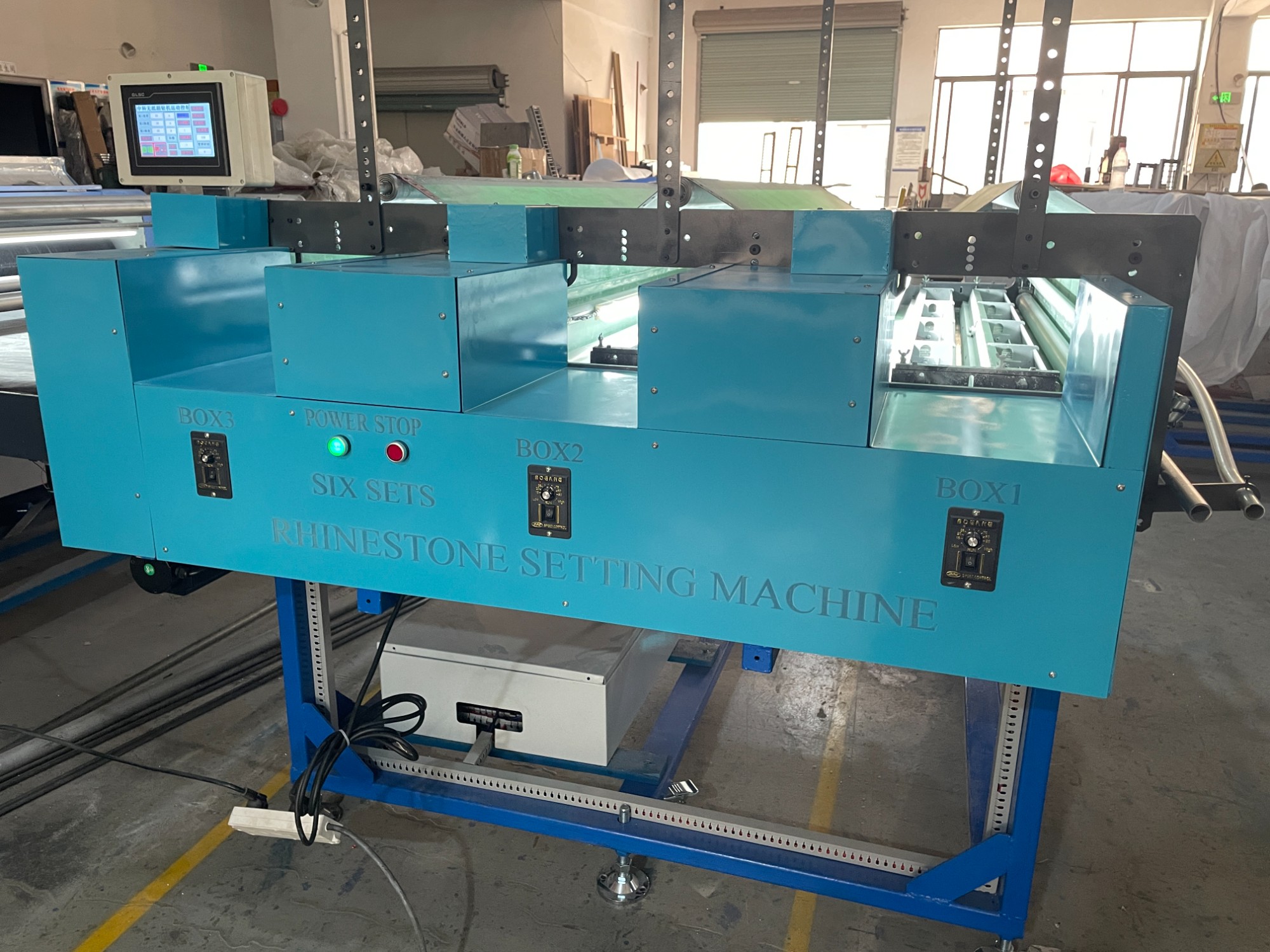

1) Paperless Rhinestone Setting Machine
To load templates into this device, control them through a computer system, and display and attach hot-fix stone to the fabric according to the pattern on the template.
|
Model |
R2000-6 |
|
Function |
setting hot-fix rhinestone on whole rolls fabric by design template. |
|
Design rhinestone type |
3 color same size or 6 different size |
|
Fabric Width |
Max 2000mm |
|
Automatic |
yes |
|
Speed |
0 meter to 15 meter /minute |
|
Design width |
Max 200cm (On the fabric) |
|
Design Repeat Size |
Max 200*250cm with machine standard, IF more 250cm length repeat size, extra to make design Support. |
|
For Rhinestone Diameter |
1.8mm to 5mm (SS6 – SS40) |
|
Power |
AC220V-380V 50/60 Hz 600W |
|
Packing szie |
2600mm*800mm*1260mm Wooden packing |
|
Weight |
500KGS |
| Delivery date | 7 days |
2) Fusing machine
To heat and fix the pre arranged patterns on the clothing fabric by setting the heating temperature
| Model | FF2000 |
|
Function |
Set temperate to heat |
|
Fabric Width |
Max 2000mm |
|
Automatic |
YES |
|
Speed |
0 meter to 20 meter /minute |
|
Heater quantity |
6 heater: 24.5kw 9 heater 37kw (optional) |
|
Temperature |
Max 200℃ |
|
Power |
4P/380V.50-60Hz |
|
Packing szie |
2600mm*1650mm*1420mm Wooden packing |
|
Weight |
600KGS |
3) Auto Fabric Feeding Machine (optional)
Automatic fabric feeder, automatically conveying the fabric to the hotfix rhinestone equipment
|
Model |
FF2000 |
|
Function |
auto conveying the fabric to the hotfix rhinestone equipment |
|
Fabric Width |
Max 2000mm |
|
Automatic |
YES |
|
Speed |
0 meter to 20 meter /minute |
|
Power |
220V. 600Kw.50-60Hz |
|
Packing size |
2600mm*950mm*1650mm |
| Weight |
350KGS |
